Cheapest b650 motherboard with integrated io shield. Seems decent for the price.
CPU
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: AMD
Supported Processors: AMD Ryzen 7000 Series Desktop Processors
64-bit Support: Yes
Socket: AM5
Rear Panel I/O Ports
USB Ports: 1 x USB-C 3.2
1 x USB-C 3.1
2 x USB 3.1
4 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.4
HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
SATA Connectors: 4 x SATA III
USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
Memory Bus Speed: Up to 6400 (OC) MHz
Memory Type: DDR5
Motherboard
Northbridge: B650
RAID Supported: Yes
RAID Format: RAID 0, 1, 10
SATA Supported: Yes
Rear Panel I/O Ports
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 3 x 3.5mm Jacks
Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
Front Panel Connectors: 1 x Front Panel
1 x Front Audio
Cooling Fan Support: 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
4 x Chassis fan headers
Serial Connectors: 1 x COM header
Chassis Intrusion Connector: 1 x Chassis Intrusion header
Power Connector Port: 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
Expansion
Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots ( x16/x4)
2 x PCI Express 4.0 x1 slots
Memory
Maximum RAM: 128 GB
Memory Slot: 4 x DIMM
Graphics Device
Integrated Graphics Supported: Yes
Sound
Integrated Sound: Realtek ALC S1200A
Warranty
Warranty: 3 Years
Network
Integrated Network: Realtek
Network Speeds Supported: Up to 2.5 Gbps
Wireless LAN: No
Bluetooth: No
System Requirements
Operating Systems Supported: Microsoft Windows 11 64-bit
System
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers: 1 x Clear CMOS
Software Included: Yes
Drivers: Yes
Physical
Form Factor: ATX Motherboard
In The Box: Motherboard
2 x SATA 6Gb/s cables
2 x Rubber Package(s) for M.2
1 x Screw package(s) for M.2 SSD
1 x Support DVD
1 x TUF Certification card
1 x User guide
Width: 300 mm
Length: 244 mm
Identifiers
Stock Code: MBD3375

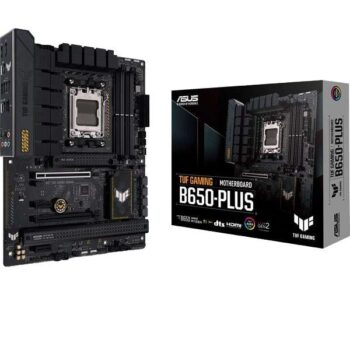

Mfg Code: TUF GAMING B650-PLUS
